Our project was initially to create a computer mouse using
accelerometers and the USB I2C-IO board which was operated by moving
your hand in the air.
The mouse electronics would be built onto a glove.
We did build a glove with these electronics, but
found that measuring acceleration from movements was far too difficult
due to tilt.
Tilting your hand even the slightest bit caused more acceleration on
the movement axes that even very fast hand movements.
Our project was then modified to use tilt. This
has worked rather well. Our mouse can be used for both basic mousing
tasks and specialized applications, like games.
The learning curve
on the mouse is very steep, but the project is still very, very cool.
It has an enable so that you can type while
wearing the glove without the cursor moving.
The glove itself is only knuckle length to allow for this.
The best way to actually describe how this works, though, is to watch it. A few videos are available below.
Downloads: source
code directory video
one video
two (VERY large, 58mb) video
three (large, 22mb)
Introductory
Presentation Final
Presentation Design

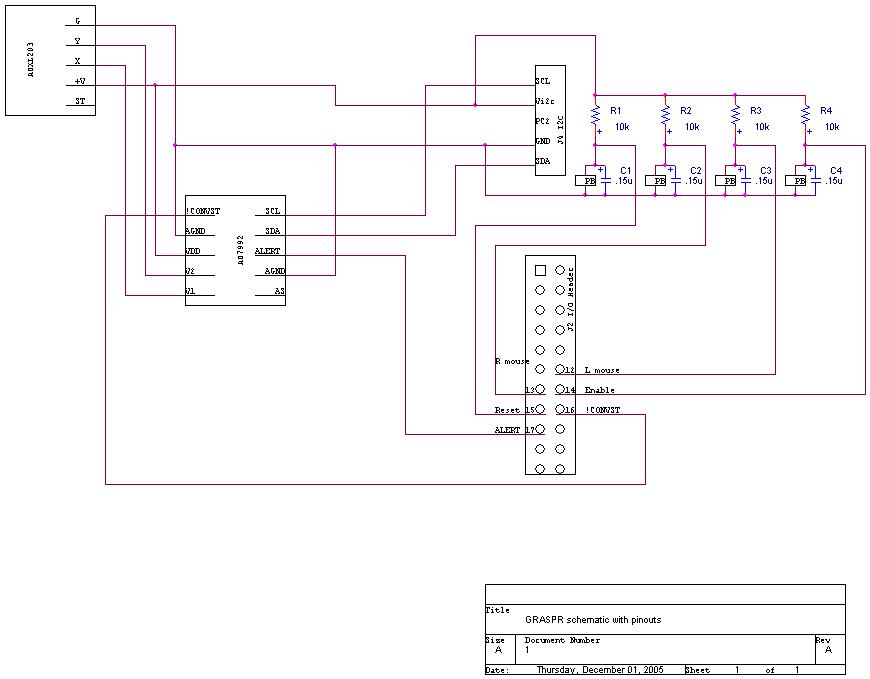

Schematic
