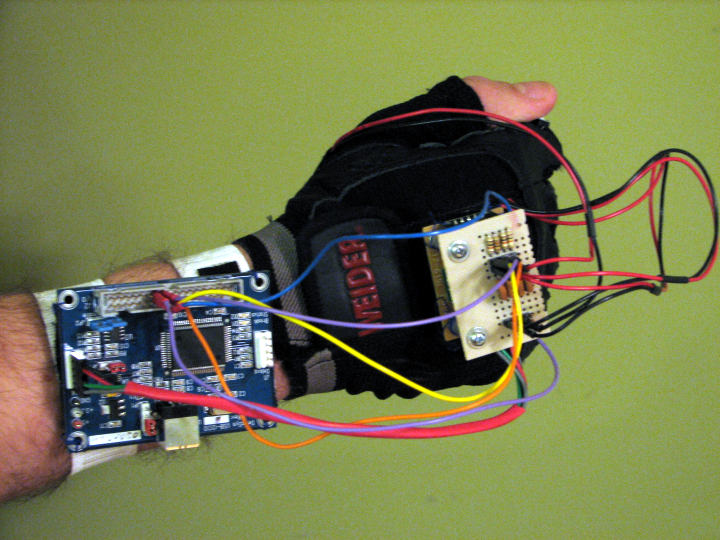

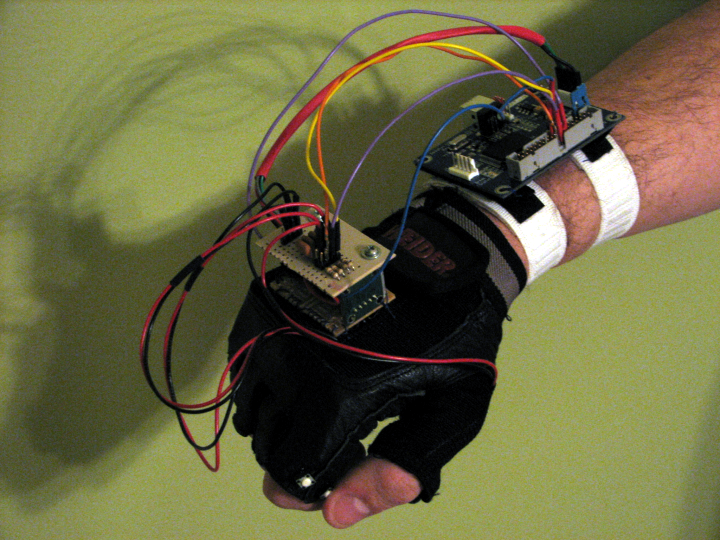

The glove consists of a stacked board which has our dual-axis accelerometer and an ADC on the bottom.
On the top of the board, there are headers for connecting our buttons.
It can support up to four buttons, each with a debouncing capacitor.

A cable runs from this board to the I2C header of the USB I2C-IO board.
We use custom firmware for the board to support the HID device platform.
This board is attached to a wrist band.
